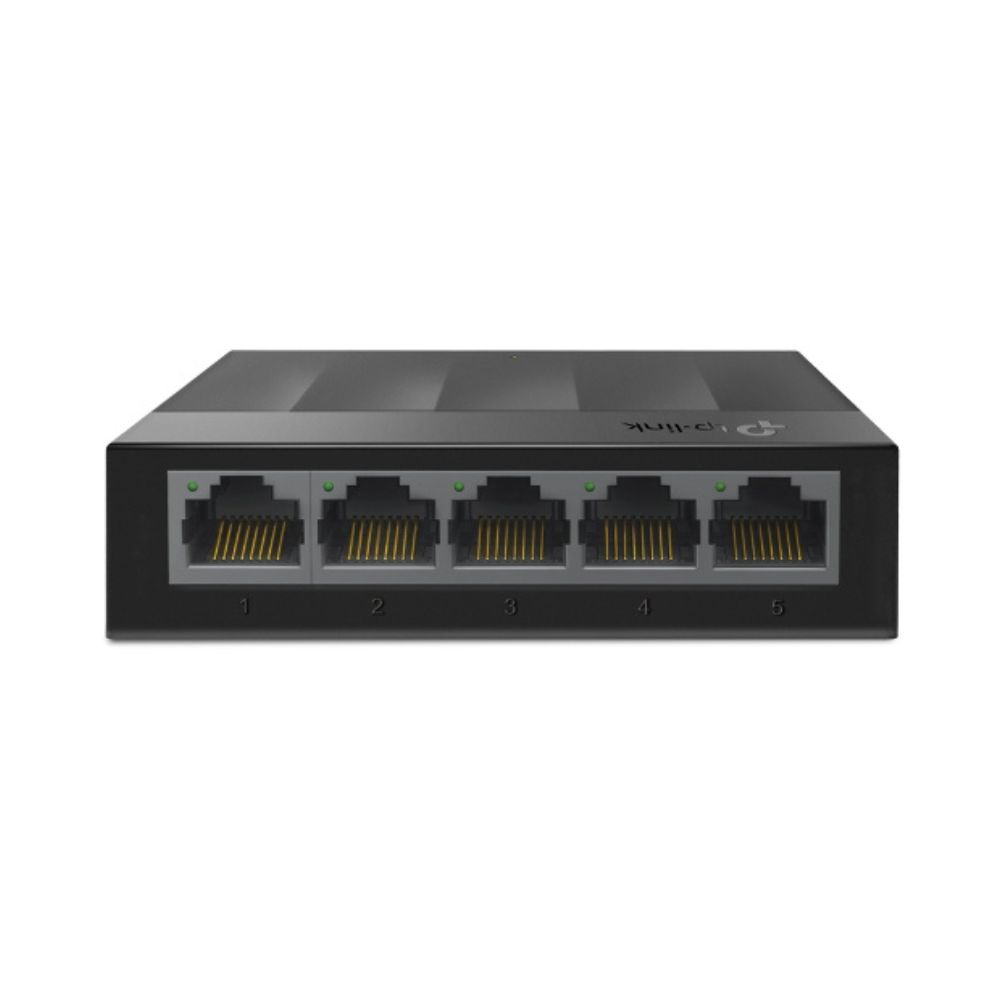

TP-Link 5-port 10/100/1000Mbps Desktop Switch TL-LS1005G
Specifications
- Networking Standards: IEEE 802.3i / 802.3u / 802.3ab / 802.3x
- Port Configuration: 5 × 10/100/1000Mbps RJ45 Ports
- Smart Port Functions: Auto-Negotiation, Auto-MDI/MDIX
- Switch Type: 5-Port Gigabit Desktop Switch
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.4 Mbps
- MAC Address Table: 2K Entries
- Power Efficiency: Fanless Design
- Maximum Power Consumption: 3.7W
- Heat Dissipation: 12.617 BTU/h
- Power Supply: External Power Adapter
- Power Output: 5V DC / 0.6A
- Physical Dimensions: 3.5 × 2.8 × 0.9 inches (90 × 72 × 23 mm)

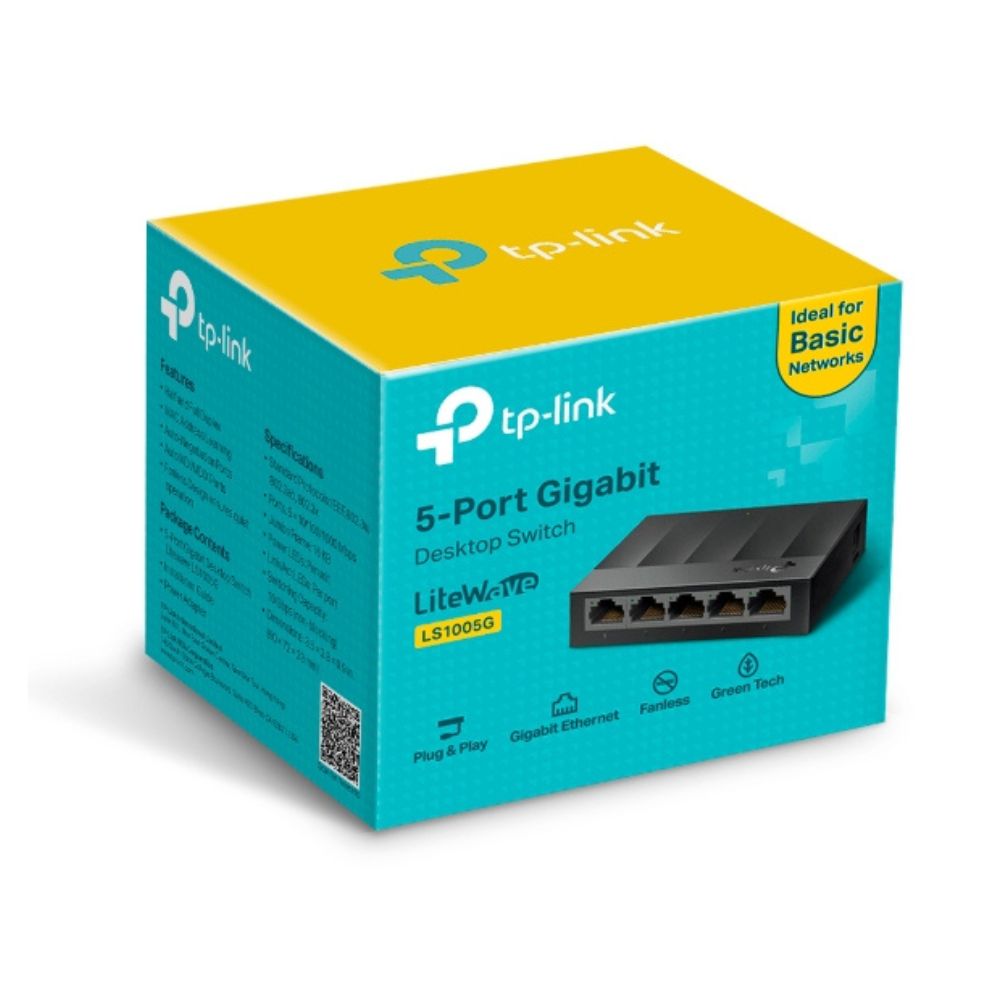

- Package Contents: 5-Port 10/100/1000Mbps Desktop Switch, Power Adapter, Installation Guide
KSh 2,500.00 KSh 2,800.00
The TP-Link TL-LS1005G is a compact unmanaged Gigabit Ethernet switch designed to expand wired network connections effortlessly. Built for homes, small offices, and lightweight business environments, this 5-port desktop switch delivers fast, reliable performance with zero configuration required — simply plug in and connect.
Key Features & Benefits
High-Speed Gigabit Connectivity
-
5× 10/100/1000 Mbps RJ45 ports provide full gigabit speeds for connected devices.
-
Every port supports Auto-Negotiation and Auto-MDI/MDIX, eliminating the need for crossover cables.
-
With a 10 Gbps switching capacity and 7.4 Mpps forwarding rate, the switch can handle bandwidth-intensive tasks like file transfers, HD streaming, and IP surveillance feeds.
Plug & Play Simplicity
-
No software or configuration is needed — just connect your Ethernet cables and power adapter to get instant network expansion.
-
Ideal for beginners, home users, gamers, and small business owners who want a hassle-free networking solution.
Energy Efficient & Quiet Design
-
Green Ethernet technology automatically adjusts power usage based on cable length and link activity — helping reduce electricity bills and environmental impact.
-
Fanless construction means virtually silent operation and increased hardware longevity.
Technical Specifications
Hardware & Performance
-
5 Gigabit Ethernet ports (RJ45) with auto-features
-
Switching capacity: 10 Gbps
-
Packet buffer memory: 1.5 Mb
-
Jumbo Frame support up to 16 KB
Power & Efficiency
-
External 5 V DC / 0.6 A power adapter
-
Max power consumption: ~3.7 W
Form & Design
-
Compact, lightweight desktop or wall-mountable plastic enclosure
-
Fanless, quiet performance perfect for offices or living spaces
Who Is It For?
Perfect for:
-
Home offices & remote workstations needing extra wired ports.
-
Small businesses looking for cost-effective network expansion.
-
IP camera and surveillance systems that rely on stable wired connections.
-
Media & entertainment hubs with consoles, Smart TVs, and streaming devices.
Final Thoughts
The TP-Link TL-LS1005G desktop switch is an affordable, reliable upgrade for anyone looking to expand a wired network without complexity. Its plug-and-play ease, energy-efficient design, and full gigabit performance make it a versatile choice for both personal and professional networking needs.
