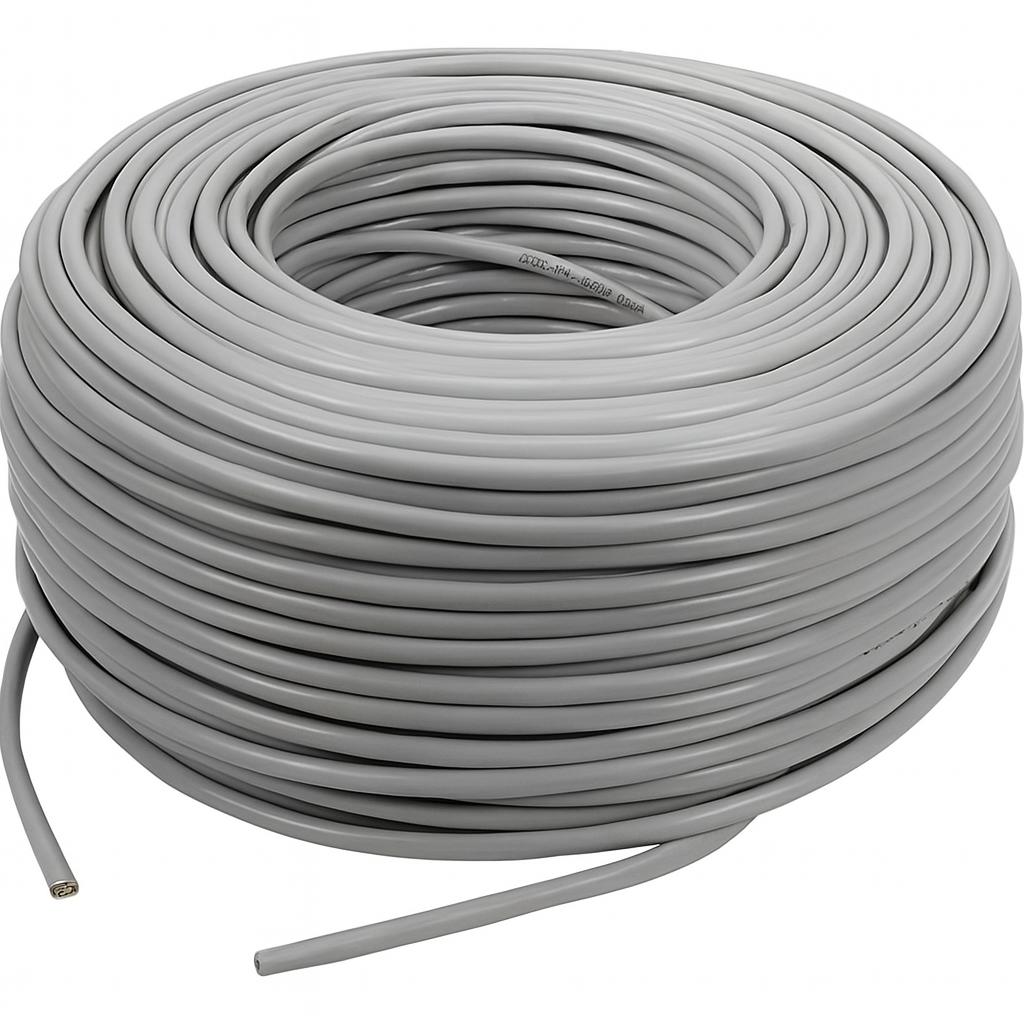

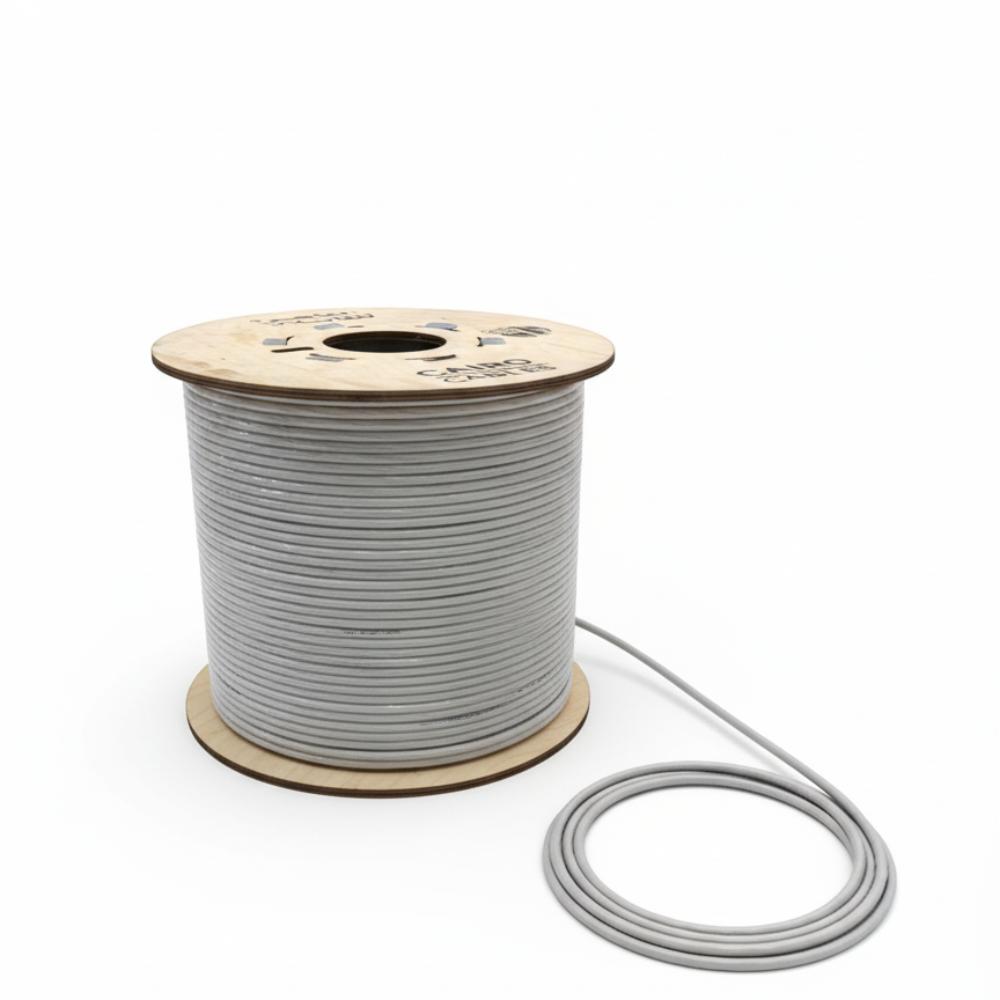

PREMAX CABLE CAT 6 CABLE UTP 305M PBC624

The PREMAX CAT 6 UTP Cable PM-PBC624 305M is a networking cable designed to provide reliable wired connectivity for modern Ethernet networks. It is suitable for structured cabling installations in offices, schools, homes, server rooms, commercial buildings and other environments that require stable data communication.

Featuring Category 6 (CAT 6) technology, the PM-PBC624 is designed to support Gigabit Ethernet networking and bandwidth-intensive applications. It uses four twisted pairs of conductors to transmit data between connected network devices. This twisted-pair construction helps minimise crosstalk and maintain signal quality during transmission.

The cable uses UTP (Unshielded Twisted Pair) construction, making it suitable for typical indoor installations where additional foil or braided shielding is not necessary. Its PVC outer jacket provides protection for the internal conductors during normal installation and use.

Supplied in a convenient 305-metre (1,000-foot) box, the PREMAX PM-PBC624 is ideal for network technicians, IT professionals and installers handling multiple network points. It offers sufficient cable length for structured cabling projects while allowing installers to cut individual runs according to their requirements.

Key Features of PREMAX PM-PBC624

• Category 6 Technology: Designed for modern Ethernet networks and Gigabit data transmission.
• 305-Metre Cable Length: Provides approximately 1,000 feet of cable for larger installations and multiple network connections.
• UTP Construction: Unshielded Twisted Pair design suitable for standard indoor networking environments.
• Four Twisted Pairs: Contains eight conductors arranged into four pairs to support Ethernet communication.
• PVC Outer Jacket: Provides an outer protective layer and helps with cable routing during installation.
• CCA Conductors: Retailer listings identify the cable as using copper-clad aluminium conductors; check the product markings to confirm the exact supplied version.
• Grey Cable Colour: Offers a neutral, professional finish for structured cabling installations.
• Easy-Pull Box Packaging: Helps installers dispense cable during installation and manage longer cable runs.
• Broad Network Compatibility: Suitable for compatible Ethernet network equipment and standard RJ45-based structured cabling components.

Detailed Technical Specifications

• Brand: PREMAX
• Model Number: PM-PBC624
• Product Name: CAT 6 UTP Network Cable
• Cable Category: Category 6
• Cable Length: 305 metres
• Equivalent Length: Approximately 1,000 feet
• Cable Type: UTP – Unshielded Twisted Pair
• Conductor Arrangement: Four twisted pairs (eight conductors)
• Conductor Material: CCA – Copper-Clad Aluminium, as reported by retailers
• Conductor Gauge: 24 AWG, reported by some retailers
• Outer Jacket Material: PVC
• Cable Colour: Grey

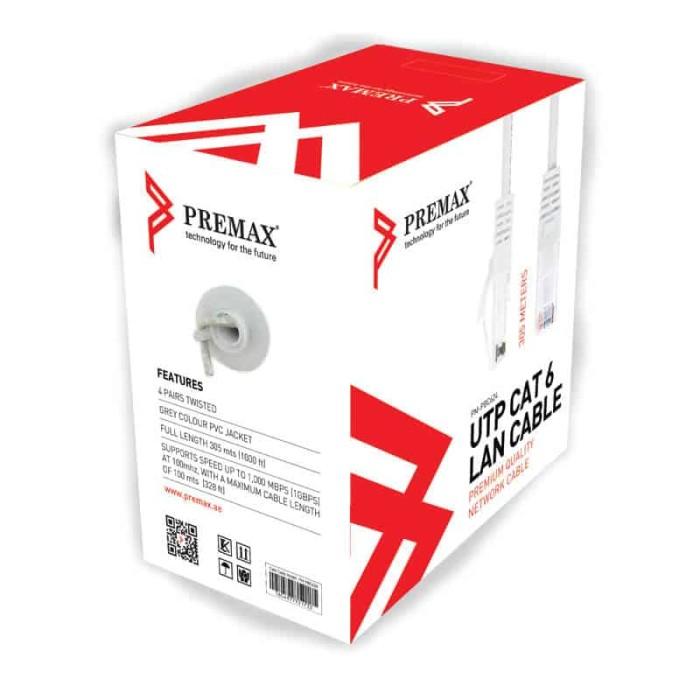

• Packaging: 305-metre easy-pull box
• Connector Type: Unconnectorised bulk cable; requires compatible termination
• Primary Application: Ethernet networking and structured cabling

Understanding CAT 6 UTP Technology

Category 6 is an Ethernet cabling category designed for improved networking performance compared with older Category 5e installations. CAT 6 cabling supports a bandwidth of up to 250MHz and Gigabit Ethernet at standard channel distances of up to 100 metres when the complete installation meets the relevant requirements.

UTP stands for Unshielded Twisted Pair. Unlike FTP cables, which include additional foil shielding, UTP cables rely on the twisting of individual conductor pairs to help reduce interference and crosstalk.

This makes CAT 6 UTP a practical option for ordinary office, residential and commercial network installations. It is also generally easier to terminate because it does not require the additional shielding and grounding considerations associated with shielded cabling.

Applications of PREMAX CAT 6 UTP Cable

The PREMAX PM-PBC624 is suitable for a wide range of networking applications:

• Office LAN Installations: Connects computers, printers, switches and other Ethernet-enabled devices.
• Server Rooms: Supports structured connections between servers, switches, patch panels and network equipment.
• CCTV Systems: Provides wired Ethernet connections for compatible IP cameras and network video recorders.
• School and University Networks: Suitable for computer laboratories, administrative offices and institutional network infrastructure.
• Home Networking: Supports wired internet connections for desktop computers, smart TVs and compatible networking devices.
• Commercial Buildings: Helps create structured network connections between offices, floors and communication rooms.
• Wi-Fi Access Points: Provides Ethernet backhaul connections to compatible wireless access points.
• VoIP Systems: Supports compatible network-based telephone installations.

Why Choose PREMAX CAT 6 UTP Cable 305M?

A reliable network installation begins with choosing suitable cabling. The PREMAX PM-PBC624 offers a convenient 305-metre supply for installers who need to create multiple Ethernet connections across a building or working environment.

Its CAT 6 construction supports Gigabit Ethernet networking, while the four twisted pairs help maintain reliable data transmission. Furthermore, the PVC jacket provides everyday installation protection, and the UTP design makes it suitable for standard indoor network environments.

For professional results, use compatible RJ45 connectors, keystone jacks and patch panels. Ensure that each cable run is correctly terminated and tested. Avoid running unshielded network cable too close to sources of significant electrical interference.

Buy PREMAX CAT 6 UTP Cable 305M PM-PBC624 from Petracom Solutions

Upgrade your network infrastructure with the PREMAX CAT 6 UTP Cable PM-PBC624 305M. Whether you are setting up an office LAN, installing IP surveillance cameras, connecting networking equipment or upgrading an existing structured cabling system, this cable offers a practical solution for compatible Ethernet installations.
